MOTOMAN Technical Specification and Rate Card


Technical

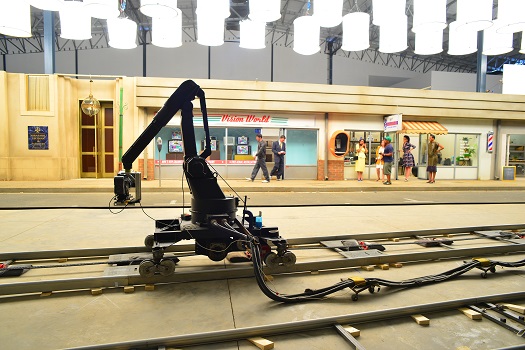

The Motoman is a dolly mounted robotic arm. It is based in Johannesburg and fully transportable to any location in Southern Africa in our custom trailer.

Enquiries
Peter +27 (0)83 274 1675
peter@reflex.tv
A variety of camera configurations can be programmed into the Motoman. The actual lens nodal point can be used to accurately perform nodal pan, tilt and rolls.
The rig uses Giraffe standard tracks and requires 3 phase 15kW power.




We can export move data from the Motoman but this is not a direct system like the Flair driven rigs. If data is important please speak to us regarding your requirements.
Shoots with track lengths of up to 45m have been executed. The maximum track speed of the Motoman is 1.3 m/sec.
Long time lapse moves are easy to do on the Motoman. With a lowest move speed of 0.1 mm/sec the rig can be set to accurately track 1 meter every 3 hours, and then repeat that move at higher speeds.



Rate Card



Item


Prelight/prerig days...
Shoot days...
Travel/down days at 50% rate
Principal operator (ex JHB)...
Assistant (ex JHB)...

Crew travel/down days @ 50%

Transport excluded


Peter +27 (0)83 274 1675


Rate


ZAR 25,000 per day
ZAR 25,000 per day

ZAR 5000 per day
ZAR 2000 per day



Contact us for a full quotation


peter@reflex.tv

Subject to change without notice and Reflex Motion Control standard conditions of contract.
